Model 305 Token Station
Parking Token Station

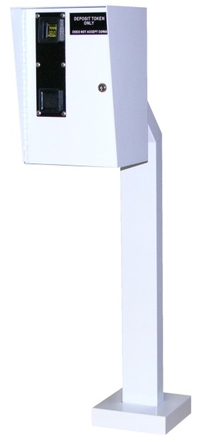

The Engineered Parking Systems' Token Controller is a high quality, low-cost access control device. The controller accepts only tokens and will reject coins. To combine monthly (contract parking) with token operation, a card reader can be added, either at the factory or in the field. The Model 305 is ideal for controlled visitor exit or flat rate central pay applications.
TL-875 & TL-1 Tokens for 305 Token Station
Document
305 Token Station Data Sheet
Document
305 Instruction Manual

Technical Data:

~Housing:  Weather resistant heavy 14-gauge steel construction

~Hinged front door with key lock

~Mounts on pedestal for easy operation

~Powder coated finish, white or beige

~Token Mechanism: Single token acceptance (.900" or .984" diameter  standard , other sizes available. Specify size when ordering)

~No power required

~Available with optional 12 VDC lock-out coil (Model 305LC)

~Available with electronic token acceptor (Model 305ST)

~Optional card reader or intercom mounted on door

Mechanical:

~Housing: 14 1/4" High, 9 ½ Wide, 9" Deep

~Overall height on pedestal is 43"



Weight:

~20 Lbs.    -Pedestal

~20 Lbs.    -Token Controller
